VMware PowerCLI vs OpenShift CLI

October 31, 2026 AB

VMware to OpenShift Virtualization — Article 12 of 15

Technical baseline: OpenShift Virtualization 4.20 and MTV 2.11 documentation. Reviewed 31 October 2026. Examples are instructional and have not been executed against a production cluster; check your installed release, support matrix, and environment before use.

PowerCLI and the OpenShift command-line tools solve similar administrative problems through different interfaces. PowerCLI normally returns PowerShell objects representing vSphere entities. oc operates on Kubernetes resources, while virtctl exposes virtualization-specific operations. Reliable automation needs to preserve that distinction.

Translate the operating model first
Treat context as part of every operation
Convert JSON into objects instead of parsing tables
Keep requested state separate from observed state
Use manifests for repeatable configuration
Error handling, retries, and concurrency
Build equivalence around outcomes

Translate the operating model first

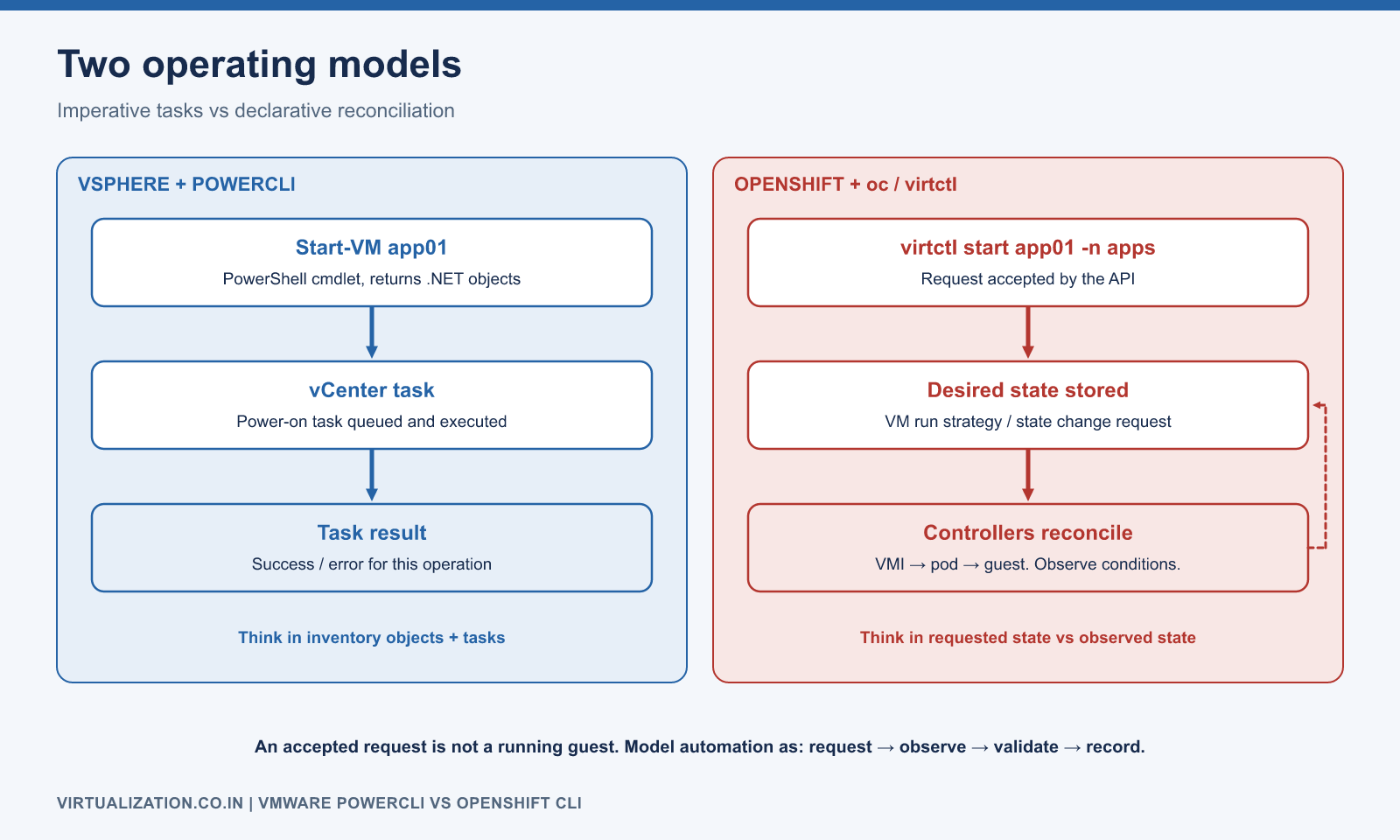

Imperative PowerCLI model where a cmdlet runs a vCenter task, compared with the declarative OpenShift model where oc or virtctl submits desired state that controllers reconcile into observed state — Figure 1. PowerCLI typically drives imperative vCenter tasks; oc and virtctl submit desired state that controllers reconcile asynchronously. Select the diagram to view it at full size.

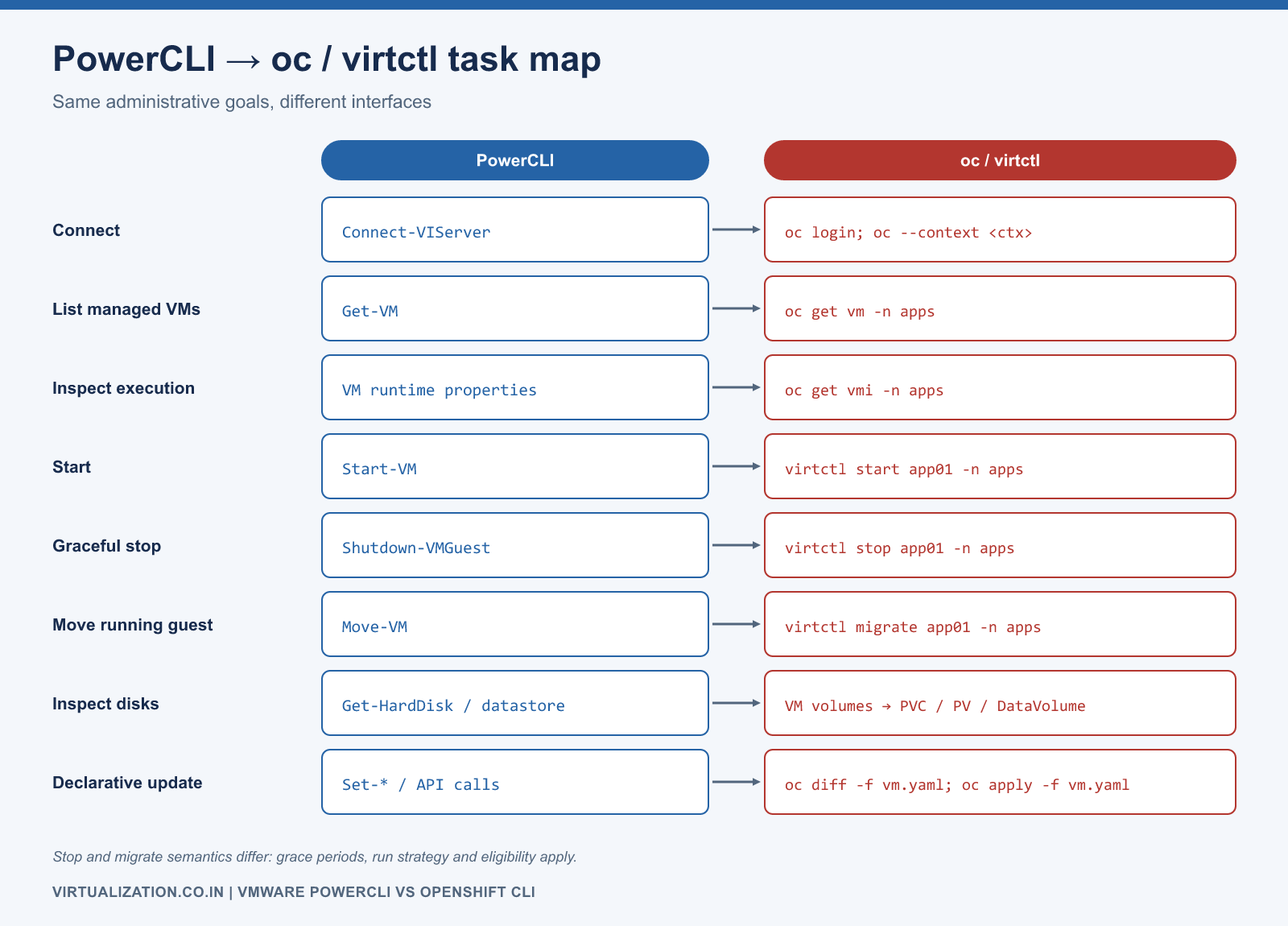

Task mapping from PowerCLI cmdlets to oc and virtctl commands: connect, list VMs, inspect execution, start, graceful stop, move running guest, inspect disks and declarative update — Figure 2. Everyday tasks mapped from PowerCLI to oc / virtctl. This is a task mapping, not a guarantee of identical semantics. Select the diagram to view it at full size.

Task	vSphere / PowerCLI	OpenShift Virtualization
Connect	`Connect-VIServer`	Authenticate with `oc`; select an explicit context
List managed VMs	`Get-VM`	`oc get vm -n apps`
Inspect execution	VM runtime properties	`oc get vmi -n apps`
Start	`Start-VM`	`virtctl start app01 -n apps`
Graceful stop	`Shutdown-VMGuest`, when guest integration permits	`virtctl stop app01 -n apps`, subject to lifecycle/grace-period behavior
Move running guest	Appropriate `Move-VM` workflow	`virtctl migrate app01 -n apps`, if eligible
Inspect persistent disks	Virtual disk/datastore information	VM volume references, PVC/PV, DataVolume
Declarative update	API/property operations or automation tooling	Review and apply a resource manifest

This is a task mapping, not a guarantee of identical shutdown, migration, or completion semantics. Use Broadcom’s Get-VM, Start-VM, and Move-VM references for vSphere behavior.

Treat context as part of every operation

A VM name is not globally unique across OpenShift namespaces or clusters. The durable administrative key is at least cluster/context, namespace, and name; use Kubernetes UID when tracking a specific object’s lifetime.

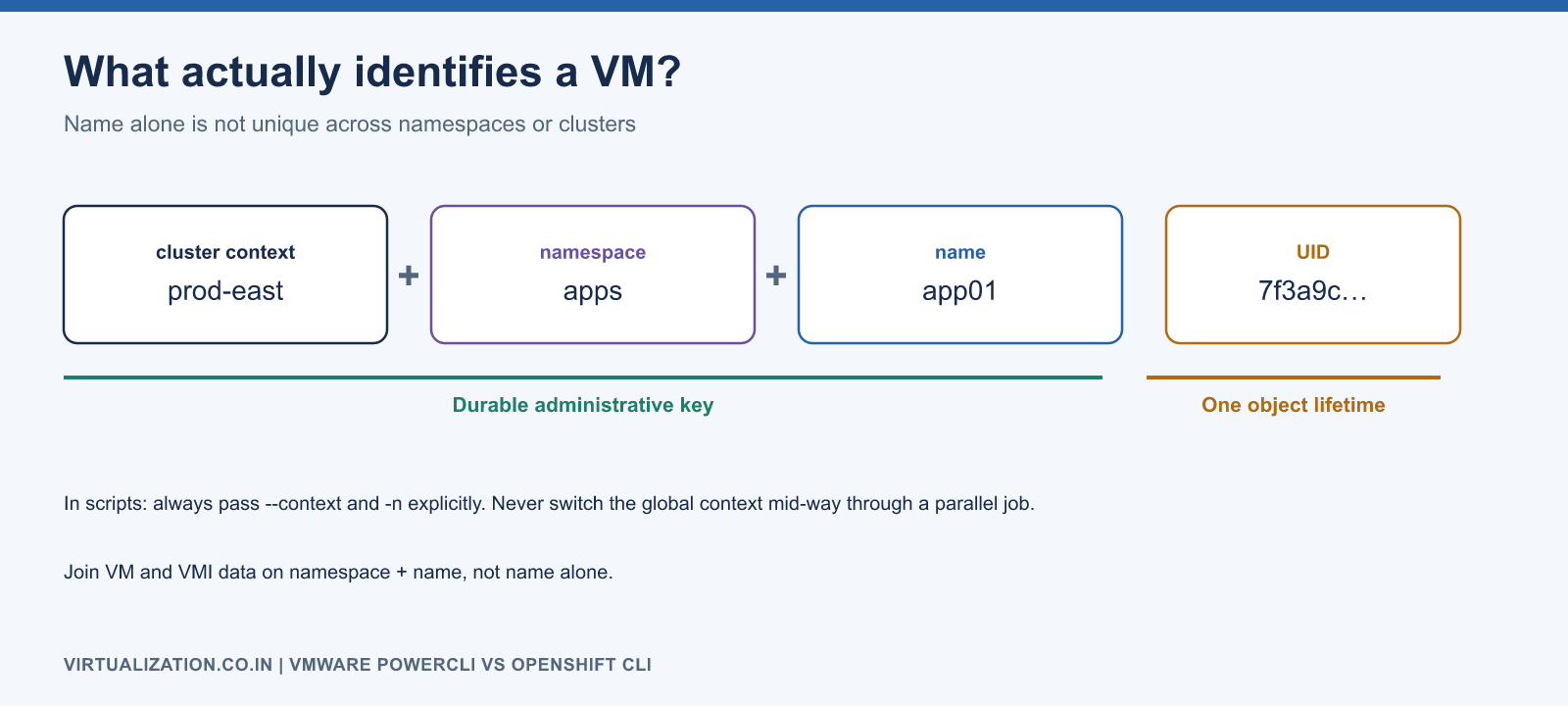

A VM name is not unique: the durable key is cluster context plus namespace plus name, and the Kubernetes UID identifies one object lifetime — Figure 3. A VM name alone is ambiguous. Use context + namespace + name as the key, and the UID to track a specific object lifetime. Select the diagram to view it at full size.

oc config get-contexts
oc config current-context
oc whoami
oc --context lab-cluster get vm -n apps

Prefer explicit --context and -n in scripts. Avoid changing a global default context halfway through a parallel job. Keep credentials in the supported login/kubeconfig mechanism, with appropriate file permissions, instead of embedding tokens into scripts or command transcripts.

On the vSphere side, use the intended server connection explicitly when multiple sessions exist. A script that works in a clean terminal can behave differently in a long-lived administrator session containing several connections.

Convert JSON into objects instead of parsing tables

Human-readable tables can change column widths or omit information. Request JSON, check the native command exit code, then deserialize. A command that prints an error must not quietly become an empty inventory.

$contextName = 'lab-cluster'
$namespace = 'apps'
$vmText = & oc --context $contextName get vm -n $namespace -o json
if ($LASTEXITCODE -ne 0) { throw 'VM inventory request failed.' }
$vmList = ($vmText -join "`n") | ConvertFrom-Json

$vmiText = & oc --context $contextName get vmi -n $namespace -o json
if ($LASTEXITCODE -ne 0) { throw 'VMI inventory request failed.' }
$vmiList = ($vmiText -join "`n") | ConvertFrom-Json

$instances = @{}
foreach ($vmi in $vmiList.items) {
    $instances[$vmi.metadata.name] = $vmi
}

$report = foreach ($vm in $vmList.items) {
    $instance = $instances[$vm.metadata.name]
    [pscustomobject]@{
        Context = $contextName
        Namespace = $vm.metadata.namespace
        Name = $vm.metadata.name
        RunStrategy = $vm.spec.runStrategy
        HasVMI = ($null -ne $instance)
        Phase = if ($instance) { $instance.status.phase } else { 'No VMI' }
        Node = if ($instance) { $instance.status.nodeName } else { $null }
    }
}
$report | Export-Csv -LiteralPath '.\vm-inventory.csv' -NoTypeInformation

This reads one namespace. If extending it across namespaces, key the join by namespace and name, not name alone. VM and VMI reads are separate snapshots in time, so a guest starting between the two requests can temporarily produce an inconsistent view. Include collection time and handle such transitions in monitoring logic.

Keep requested state separate from observed state

A successful API request often means the request was accepted. It does not mean the guest is running, the operating system is ready, or the application is healthy. Model automation as request, observe, validate, and record.

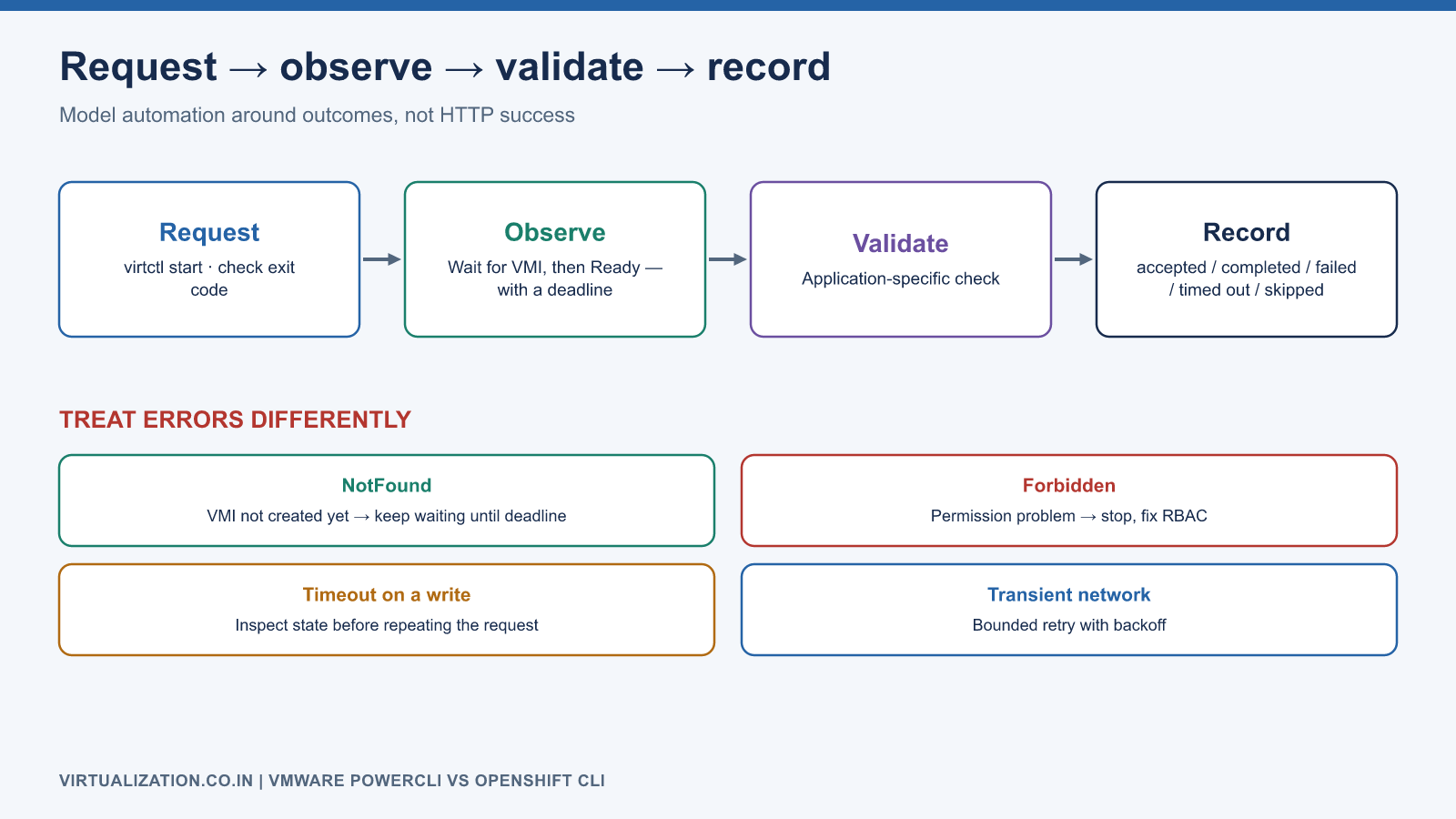

Automation loop: request, observe with a bounded wait, validate the application, record the outcome, with distinct failure outcomes for NotFound, Forbidden, timeout and network errors — Figure 4. Automate with explicit stages and bounded waits. Different errors need different outcomes — never an unbounded retry loop. Select the diagram to view it at full size.

For an already selected VM, the following starts it and waits for a VMI Ready condition, with an explicit limit:

virtctl --context lab-cluster start app01 -n apps
if ($LASTEXITCODE -ne 0) { throw 'Start request failed.' }

# Run after the VMI object exists; creation can be asynchronous.
oc --context lab-cluster wait vmi/app01 -n apps `
    --for=condition=Ready --timeout=180s
if ($LASTEXITCODE -ne 0) { throw 'VMI did not become Ready in the allowed time.' }

A production workflow should first wait for VMI creation, distinguish NotFound from permission/network errors, and then wait for readiness. Finally run application-specific checks. Avoid an unbounded retry loop that can run indefinitely or hide an authorization failure.

Use manifests for repeatable configuration

For a reviewed VM manifest, inspect the live difference and validate admission before applying:

oc --context lab-cluster diff -f app01.yaml
oc --context lab-cluster apply --dry-run=server -f app01.yaml
oc --context lab-cluster apply -f app01.yaml

diff commonly returns a nonzero status when differences exist; scripts must distinguish differences from errors. Server-side dry run validates against the actual API and admission chain, but cannot prove image availability, network reachability, storage performance, or guest boot success. The Kubernetes CLI reference covers the underlying resource-oriented command patterns.

If GitOps owns the object, update its source of truth and coordinate reconciliation. An imperative edit can be reverted by another controller. Record field ownership and make the operational procedure clear about whether emergency changes are temporary or committed back to source.

Error handling, retries, and concurrency

PowerShell’s $ErrorActionPreference is not a substitute for inspecting a native executable’s exit code across supported PowerShell versions. Capture it immediately after the relevant process, before another native command overwrites it. Keep standard output machine-readable and separate diagnostics.

Retry read operations only for identified transient failures with a bound and backoff. For writes, determine whether a timed-out request was accepted before repeating it. A migration request can create a new object; blindly repeating a create is different from repeating an idempotent read.

Limit parallelism according to API capacity and platform workload, not the speed of the administrator’s laptop. Report per-VM outcomes, including accepted, completed, failed, timed out, and skipped. Preserve original exceptions without publishing credentials or sensitive manifests.

Build equivalence around outcomes

When replacing a PowerCLI script, write an acceptance table for its actual business task. For example, a nightly inventory should produce consistent ownership, power/execution state, disk capacity, and location information. It should also identify missing permissions and partial results. Matching the old column names without preserving their meaning is not a successful port.

For a start/stop workflow, define graceful shutdown behavior, timeout, escalation, and application checks. For migration, define eligibility and client continuity. For reporting, retain units and timestamps so numbers remain comparable.

The next article builds PowerShell functions around these principles. Use the VM/VMI guide to interpret lifecycle state and the troubleshooting guide when a request is accepted but the expected result does not follow.
